What is OBD?: Understanding On-Board Diagnostics

Most drivers today are familiar with the lights and indicators on the dashboard, especially the dreaded check engine light. However, did you know these lights will be the surface level indicators for a complex system of diagnostic signals that constantly work to monitor the health of a car? From personal vehicles to commercial trucks, these systems, called OBD systems, have become a standard, making vehicle diagnosis and maintenance easier than ever before.

WHAT’S OBD?

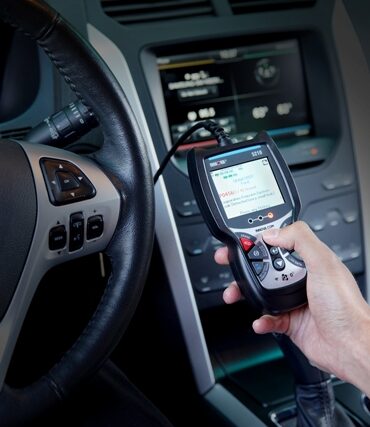

OBD means On-Board Diagnostics which is a pc system within a vehicle that tracks and regulates a car’s performance. The computer system collects information from the network of sensors inside the automobile, which the system can then use to regulate car systems or alert an individual to problems. A technician may then simply plug in to the OBD system to accumulate vehicle data and diagnose the challenge. Visit: www.innova.com

The annals of OBD begins in the 1980s. During this time period, vehicle monitoring systems were developed in response to many factors, including:

Emissions control: One of the biggest known reasons for developing OBD was to help reduce vehicle emissions. OBD systems assist in this area by monitoring the performance of major engine components for just about any system failures that could cause increased emissions. OBD is so helpful in this area that it’s incorporated into EPA literature on the implementation of the CLIMATE Act.
Electronic fuel injection: Inside the 1980s, automakers started the widespread production of vehicles with electronic fuel injection. Unlike mechanical fuel injection systems, electronic fuel injection works via computer control, with the computer system monitoring and deciding the fuel flow in to the engine.
Electronic components: As electronic fuel injection gained popularity, more electronics became commonplace in cars, increasing the need for more sophisticated monitoring systems to help identify problems more accurately.
Since its initial development, vehicle monitoring systems have undergone several iterations. Today, OBD serves as a standardized system that dictates the connectors and trouble codes used, which makes it possible for technicians to service a variety of vehicles quickly and accurately.

HOW CAN OBD Work?

A simple OBD system consists of a central system, a network of sensors, an association point and indicators, building a complete monitoring system with standardized access and readability. The OBD system contains the next components:

ECU:The central area of the OBD system is the Electronic Control Unit, or ECU. The ECU collects input from various sensors throughout the automobile. The ECU then uses this data to either control elements of the automobile, like fuel injectors, or monitor for issues.
Sensors:You can find sensors throughout vehicles covering every area from the engine and chassis to the electronic system itself. Every one of these systems sends codes to the ECU, specifying the source and the parameters of the signal. The ECU then “reads” and interprets this signal.
DTC:If a sensor sends information to the ECU that falls outside of the normal range, the ECU saves the information as a code called a Diagnostic Trouble Code, or DTC. The DTC code essentially is a set of letters and numbers, which indicate the foundation and nature of the situation. DTC codes are usually standardized but may be manufacturer-specific. Whenever a DTC is saved, the ECU sends a sign to your indicator light to convey that a problem has been found. The DTC can also be pulled by linking a sensor to the connector for the OBD system.
MIL:When the ECU collects a DTC code, it sends a sign to the automobile dashboard to carefully turn on the correct indicator lights. These lights, known formally as Malfunction Indicator Lights or MILs, offer an early warning system for vehicle malfunctions. In most cases, if the light turns on and stays on, the problem is minor. In case the light flashes, the challenge is urgent.
DLC:
Every one of the data and DTC codes collected by the ECU can be accessed via the Diagnostic Link Connector or DLC. The DLC is the point of access for vehicles with OBD systems and is often found beneath the dashboard on the driver’s side of the automobile, though it could be located elsewhere in commercial vehicles. Current vehicles are created with a typical OBDII system so that any scan tool with a sort 2 cable can hook up to the type 2 connector.
How Has On-Board Diagnostics Changed Over time?
OBD has changed significantly through the years since its introduction in the 1980s. Originally, the system would notify an individual that there is an issue using the MIL, but wouldn’t store any information as to the nature of the trouble. As cars became more advanced, the amount of sensors installed in vehicles expanded, as did the quantity of information stored inside the machine.

The evolution of OBD systems can be put into two distinct phases predicated on the sort of system popular at that time. They are described in greater detail below:

1. OBD-I
The first OBD systems were proprietary in nature, so they differed between manufacturers. Ahead of 1990, the codes, systems and information gathered by each OBD system varied widely from manufacturer to manufacturer. While these systems proved useful, these were unnecessarily complex for technicians to utilize – technicians had to get a fresh tool and cable for every vehicle make or had to purchase a scanner that had a range of adapter cables for multiple vehicle makes. Because of the proprietary nature of the systems, users were often forced to go to dealership technicians to diagnose issues.

The push to standardize OBD systems didn’t start until the California Air Resources Board mandated OBD capability in every cars in 1991. The board didn’t issue any standards for these OBDs, however, causing increased difficulties for vehicle manufacturers and users. If the OBD-II standard was implemented in 1994 in response to the need, all previous varieties of OBDs were retroactively classified as OBD-I systems.

2. OBD-II
In 1994, the California Air Resources Board issued OBD-II as a couple of standards for OBD systems for any vehicles bought from California. This standard was officially implemented in the 1996 model year and has been around use since. The Society of Automotive Engineers and the International Standardization Organization, known as the SAE and ISO, respectively, also issued standards for how digital information should be exchanged between ECUs and a diagnostic scan tool. The EPA further expanded the utilization of OBD-II following a passing of the CLIMATE Act – by 2001, 33 states and local areas require regular vehicle inspections to ensure that they meet emission standards, and OBD-II is an integral part of these inspections.

The OBD-II standards are characterized by several requirements, like the following:

OBD-II Connector: Modern OBD systems use standardized DLCs called Type 2 Connectors. This allows technicians to utilize the same cable, a sort 2 Cable, to access the digital communications stored in the OBD system. The location of the port is not standard, but as well as located under the dashboard on the driver’s side of the automobile.
System Monitoring: The EPA requires that OBD systems monitor problems that affect vehicle emissions. Many systems look into other metrics that aren’t included in this scope as a way to make it simpler to find and fix vehicle issues, however the minimum requirement is set.
With this set of standards in place, technicians can service a wider variance of vehicles efficiently with no need for manufacturer-specific tools.

WHAT EXACTLY ARE the Applications of OBD?
OBD is often used across a variety of vehicle types as a simple way to diagnose vehicle problems. However, the applications of OBD have expanded to cover more specific areas of vehicle monitoring and maintenance, especially over the past few years. Some more specific applications of OBD include:

Driver behavior monitoring: Automotive-related industries have increasingly used OBD systems as a way to monitor driver behavior. For example, some auto insurance companies offer reduced premiums for drivers that use vehicle data loggers to prove that they exhibit safe driving practices. Additionally, companies may install similar data loggers in their fleet or delivery vehicles to monitor their drivers’ behavior instantly, which can lessen their liability in case of a major accident or traffic infringement.
Emissions testing: OBD-II testing is currently a common approach to testing vehicles for emissions in elements of the U.S. that want it. Within the OBD-II standard, these systems closely monitor emissions, so inspectors can merely use a scan tool to check on for emissions-related trouble codes to ensure that the automobile is compliant.
Supplementary instrumentation: Vehicle enthusiasts and professional drivers often use OBD systems to keep an eye on metrics that are not normally displayed in standard vehicles. These metrics may be displayed on custom installations in the automobile or broadcast to the drivers’ phone.
Commercial vehicle telematics: Commercial vehicle companies commonly use what is known as Generic OBD II to assemble information about their fleet. This consists of fleet tracking, fuel efficiency monitoring, driver behavior monitoring, remote diagnostics, and even more.
